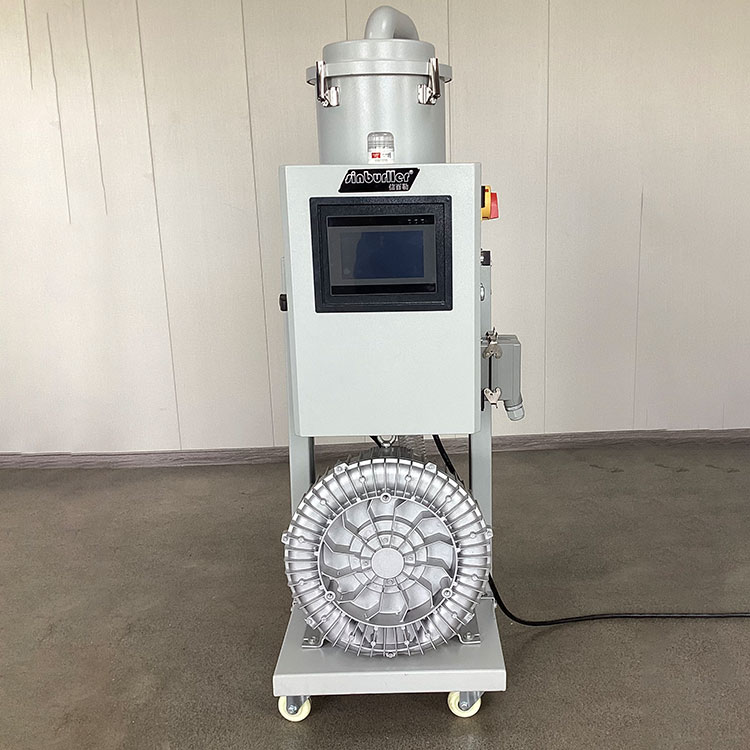

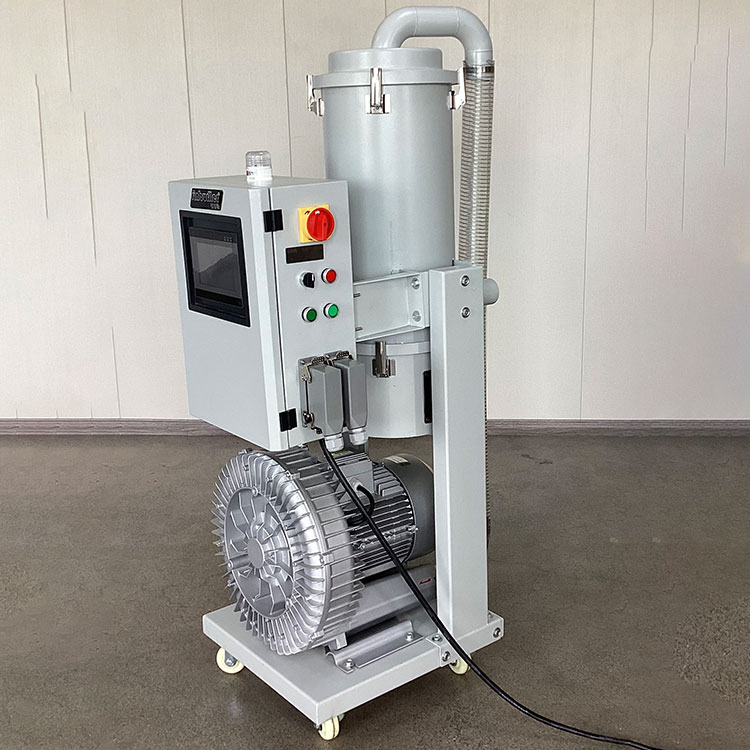

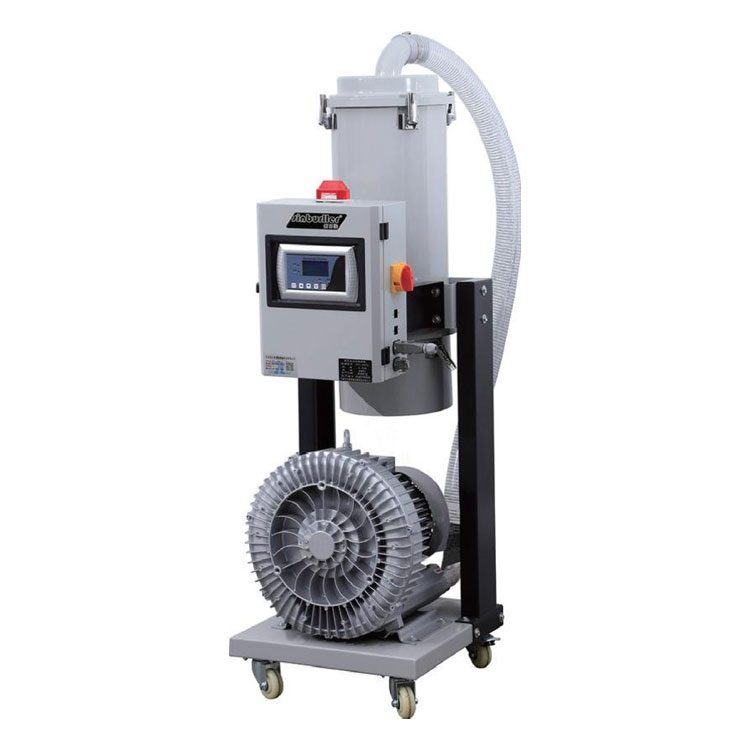

Auto Vacuum Powder Hopper Loader

Being a proficient manufacturer, Ningbo Sinburller® aims to offer you top-notch Auto Vacuum Powder Hopper Loader. We promise to provide you with the best after-sale support and prompt delivery. We are in a good position not only to supply you with high quality machinery, also excellent after sales service. Well-trained engineers will offer you technical support. The company always adheres to the principle of quality and strictly inspects its products, winning high praise and trust from customers.

Sinburller® is a professional China auto vacuum powder hopper loader manufacturer and supplier. The XTL series Auto Vacuum Powder Hopper Loader of products adopts a split design, which does not require manual labor, and can automatically intelligently load materials, automatically alarm for material shortage, and automatically blow back dust removal. Adopting high-pressure vortex air pump, with strong wind power and suction. Moreover, the choice of power size for the model has strong maneuverability and is suitable for absorbing new granular and crushed materials.


Features:

●Start the motor to pick up the air in the hopper and close the punching device, thereby generating negative pressure in the hopper

●Under negative pressure, the material in the storage tank are sucked into the hopper by delivery pipe

●When setting time, the motor stops working and the internal blanking device automatically opens the baffle, and the material flows out from the hopper and enters into the injection molding machine or other auxiliary machine

●With the advantages of convenient installation, simple operation, long distance, stable and reliable operation and high automation


Details:

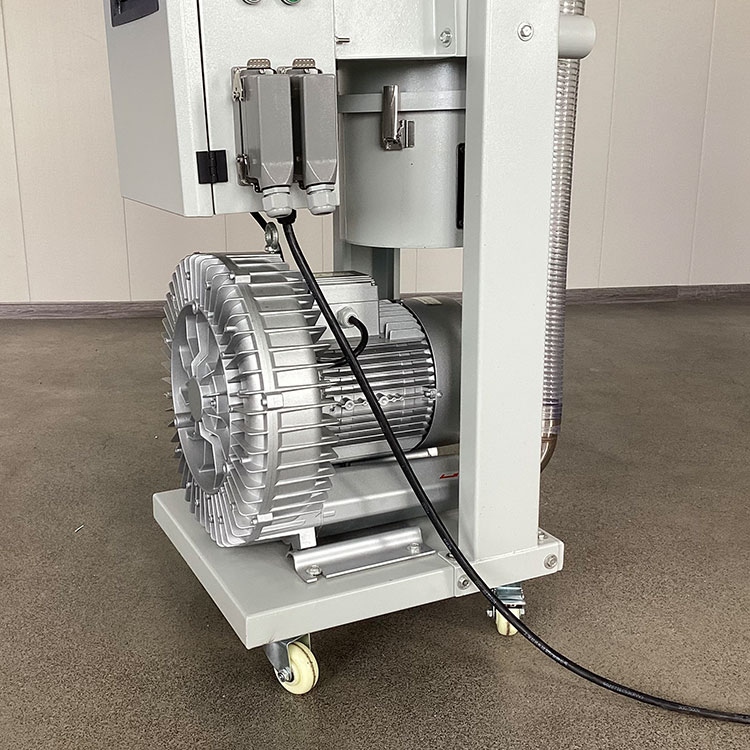

High pressure fan: The Euro Auto Vacuum Loader is equipped with a high-pressure fan that provides pure gas, can work continuously, and is more durable.

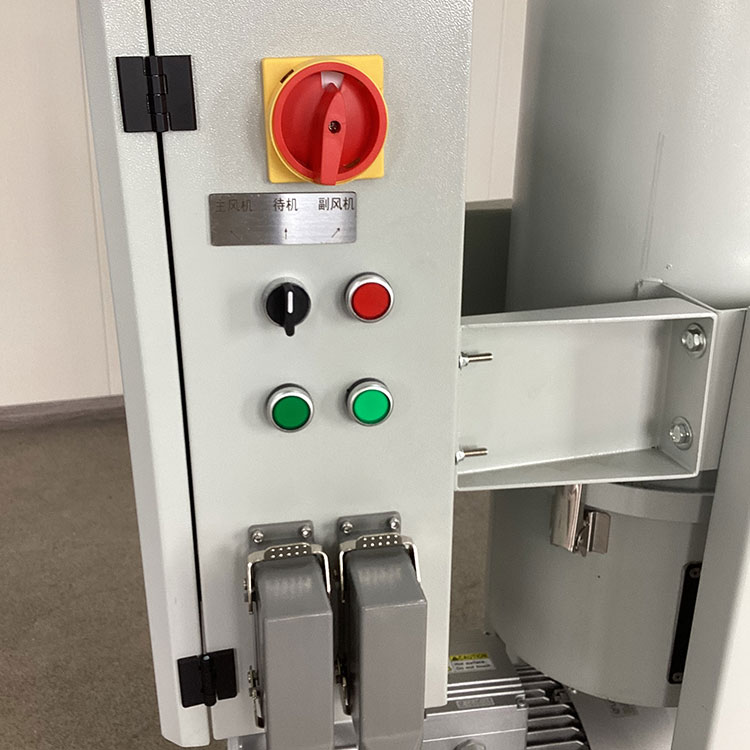

Microcomputer controller: The XTL series Auto Vacuum Powder Hopper Loader is equipped with RS485 communication function to achieve remote power on/off. It has functions such as material shortage and overload alarm.

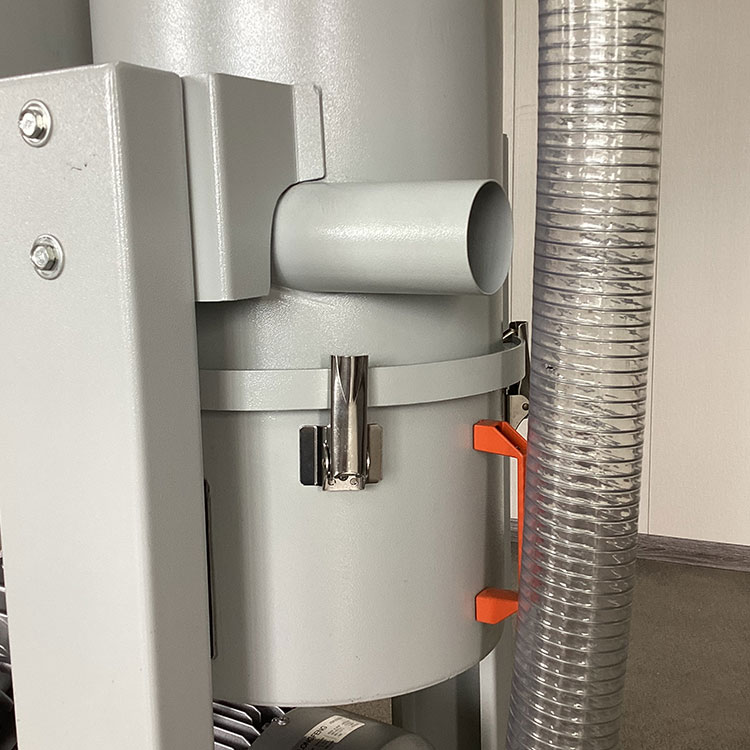

Filter: The dust collection bucket of The XTL series Auto Vacuum Powder Hopper Loader of products is equipped with a filter, which effectively filters dust and prevents single machine blockage.


Parameter

Machine type Motor
power (kw)
Conveying
capacity (kg/hr)
Conveying  height (m) Hopper
capacity  (L)
Suction pipe  diameter  (mm) L×W×D  Extemal size(mm) Net weight (kg)
XTL-1.5HP-F 1.1 42 4 7.5 38 550×450×1150 46
XTL-2HP-F 1.5 550 4 7.5 38 550×450×1150 46
XTL-3HP-F 2.2 720 6 12 51 600×450×1200 75
XTL-4HP-F 3 850 6 12 51 600×450×1200 78
XTL-5HP-F 3.8 1050 6 12 51 600×450×1200 85
XTL-7.5HP-F 5.5 1250 8 50 63 1105×850×1870 156
XTL-10HP-F 7.5 1650 8 50 63 1105×850×1870 185


Hot Tags: Auto Vacuum Powder Hopper Loader, China, Manufacturer, Supplier, Factory
