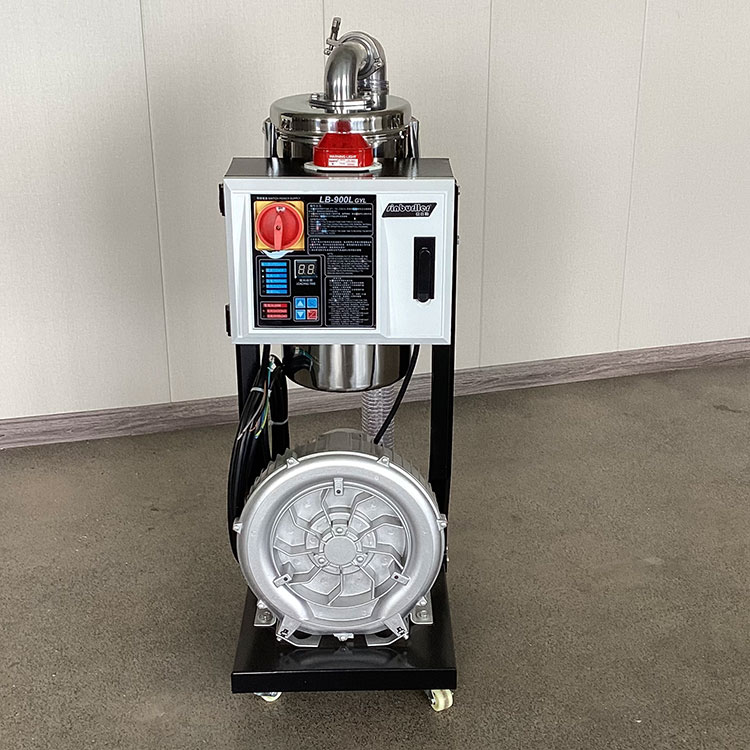

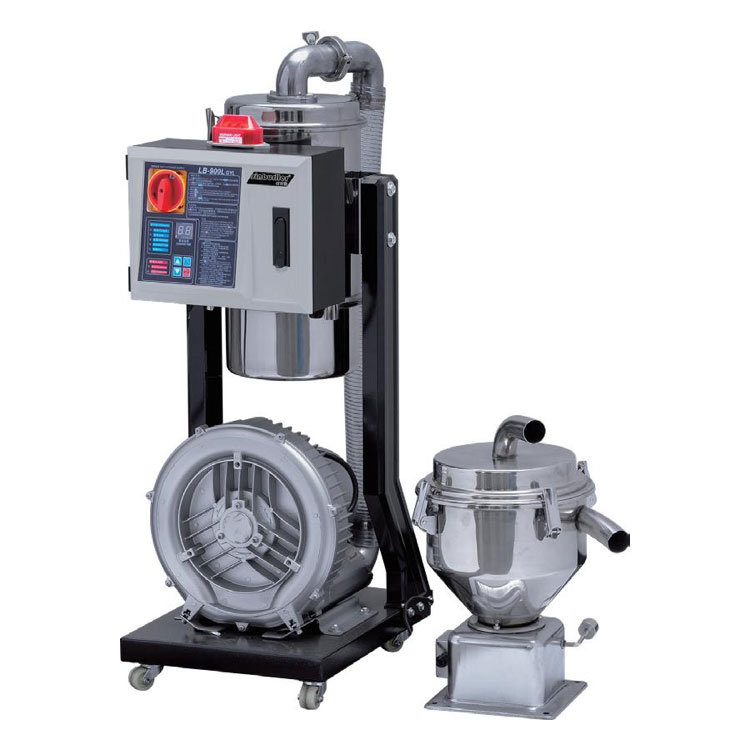

Find a huge selection of euro auto vacuum loader from China at Simbler®. The Euro Auto Vacuum Loader is a powerful, aesthetically pleasing, and easy to install filling machine. Each model adopts a stainless steel hopper to ensure that the raw materials are not contaminated. The XTL series Euro Auto Vacuum Loader uses a high-pressure fan as the power core, which has the advantages of not being easily damaged, high suction power, and long service life.
High pressure fan: The Euro Auto Vacuum Loader is equipped with a high-pressure fan that provides pure gas, can work continuously, and is more durable.

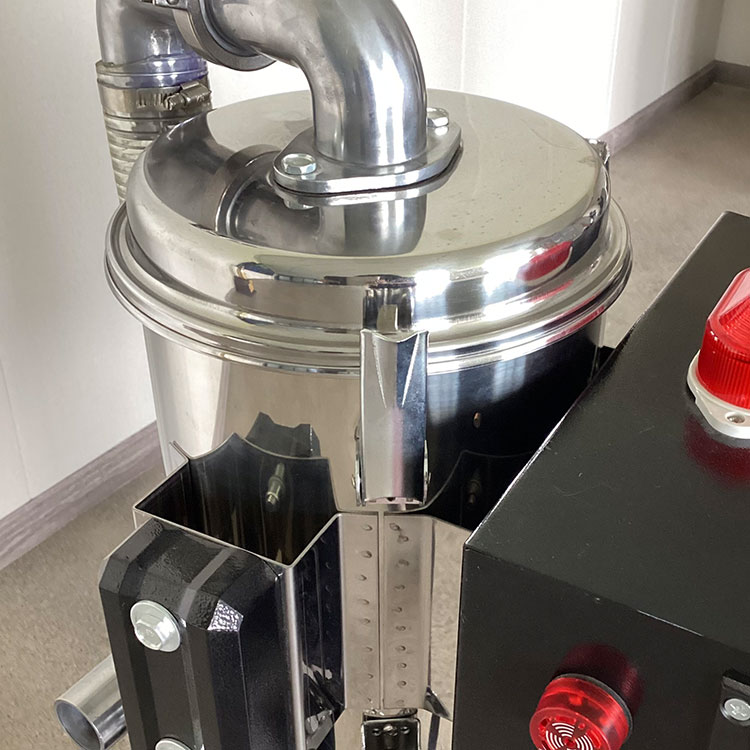

Stainless steel material: The Euro Auto Vacuum Loader is equipped with a stainless steel hopper to ensure that the raw materials are not contaminated
Separation design: The main engine and hopper are designed to be separated, which is safe, simple, and can meet customer needs

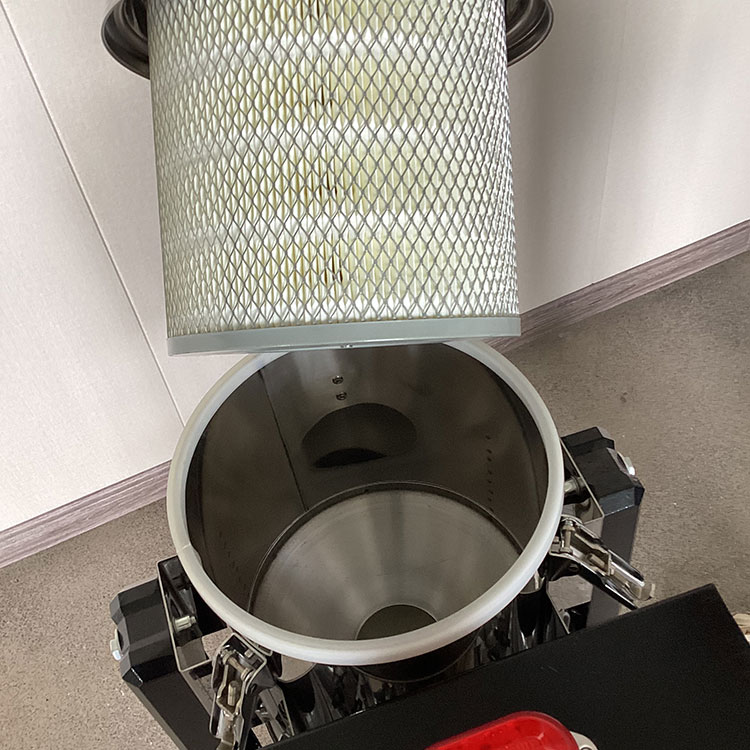

●Two stage cyclone dust collector and large dust bucket filtration technology, easy and fast maintenance
●Paired with Euro stainless steel hopper, ensuring that raw materials are not contaminated
●Filter cleaning is convenient and fast
●Optional vacuum valve to protect the fan
| Machine type |
Motor power (kw) |
Conveying capacity (kg/hr) |
Conveying height (m) |
Hopper capacity (L) |
Suction pipe diameter (mm) | L×W×H Extemal size(mm) | Net weight (kg) |
| XTL-1.5HP | 1.1 | 42 | 4 | 7.5 | 38 | 550×450×1150 | 46 |
| XTL-2HP | 1.5 | 550 | 4 | 7.5 | 38 | 550×450×1150 | 46 |
| XTL-3HP | 2.2 | 720 | 6 | 12 | 51 | 600×450×1200 | 75 |
| XTL-4HP | 3 | 850 | 6 | 12 | 51 | 600×450×1200 | 78 |
| XTL-5HP | 3.8 | 1050 | 6 | 12 | 51 | 600×450×1200 | 85 |
| XTL-7.5HP | 5.5 | 1250 | 8 | 50 | 63 | 1105×850×1870 | 156 |
| XTL-10HP | 7.5 | 1650 | 8 | 50 | 63 | 1105×850×1870 | 185 |
