Hopper Dryer

One of the Chinese companies offering Hopper Dryer for wholesale is Ningbo Sinburller®. For you, we can offer better pricing and competent service. Should you be intrigued by Hopper Dryer, kindly get in touch with us. We adhere to the standard of conscience-driven, committed service at the cost of quality assurance. We adhere to the standard of conscience-priced, devoted service, so you can feel secure.

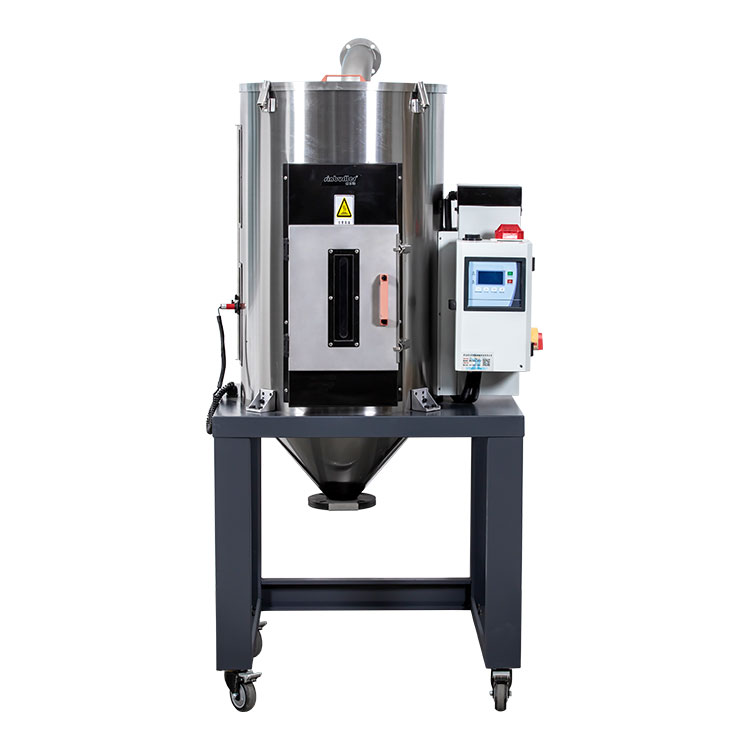

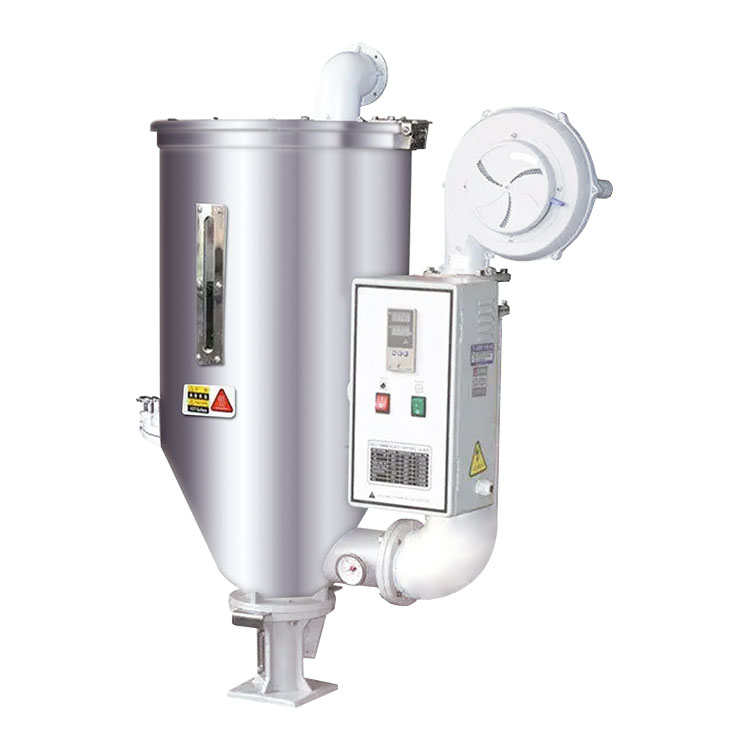

Sinburller® is a leading China hopper dryer manufacturer. The XHD series hopper dryer provides an effective and low-cost method for drying plastic materials. Due to moisture absorption during packaging, transportation, and recycling, hot air is used to dry wet materials.Our Hopper Dryer can achieve uniform heating, effectively avoiding clumping and burning, and the entire process is pollution-free.


Details

Blower: The Hopper Dryer equipped with copper motor, strong power and low noise.

Visible material window: A transparent visible material window is added to the front of the barrel of the Hopper Dryer to view the raw material situation inside the barrel at any time.

Intelligent digital display panel: using P.I.D temperature control system, easy to operate, precise temperature control


Features:

●The use of high-performance hot air diffusion devices can maintain a uniform drying temperature and improve drying efficiency.

●Equipped with a temperature protector to prevent the electric heating tube from drying out due to fan failure, protecting the electric heating tube.

●When the actual drying temperature exceeds the set value, the heater power is automatically cut off, and the alarm light flashes to give an alarm.

●Using insulated fans to extend machine life.

●Maximum drying temperature reaches 160oC.


Parameter

Machine type XHD- 12KG 25KG 50KG 75KG 100KG 150KG 200KG 300KG 400KG 500KG 600KG
Drying heating power (kw) 2.2/3* 3/3.3* 3.9/42* 42/4.8* 6/6.6* 6.6/72* 12/15* 15 18 19.5 21
Drying fan power (kw) 0.1 0.17 0.17 0.17 0.2 0.2 0.35 0.35 0.45 0.45 1.03
Loading capacity (kg) 12 25 50 75 100 150 200 300 400 500 600
H H(mm) 801 989 1112 1247 1316 1636 1852 2272 1933 2383 2174
H1 H1(mm) 676 878 924 937 1151 1151 1573 1573 1609 1609 2054
H2 H2(mm) 321 396 452 463 536 536 634 634 713 713 821
H3 H3(mm) 480 593 660 784 780 1101 1218 1638 1220 1670 1354
H4 H4(mm) 165 196 204 213 255 255 287 287 287 287 344
H5 H5(mm) 107 150 150 150 173 173 194 194 205 205 245
W W(mm) 646 728 787 874 996 996 1183 1183 1339 1339 1510
D D(mm) 342 413 508 555 627 627 753 753 893 893 1033
D1 D1(mm) 108 158 158 158 177 177 230 230 280 280 280
W1 W1(mm) 108 148 148 148 177 177 230 230 280 280 280
фA фA(mm) 327 383 478 535 602 602 745 745 897 897 1050
фB фB(mm) 42 53 53 53 81 81 110 110 116 116 130
Net weight (kg) 23 25 37 39 55 56 113 116 132 134 205
