Being a proficient manufacturer, Sinburller® aims to offer you top-notch Air Cooled Chiller. We promise to provide you with the best after-sale support and prompt delivery. Air Cooled Chiller Cooling temperature range 5~35℃ and equipped with stainless steel insulated water tank, long service life, no pollution. The refrigerant adopts R22 with good cooling effect. The refrigeration system adopts various kinds of precision control, which can accurately control the stability of the system. Compressor and pump are protected against overload. Finned condenser is adopted for fast heat conduction and good heat dissipation. Adopt famous brand original precision temperature control meter, display accuracy of ± 0.5 ℃.

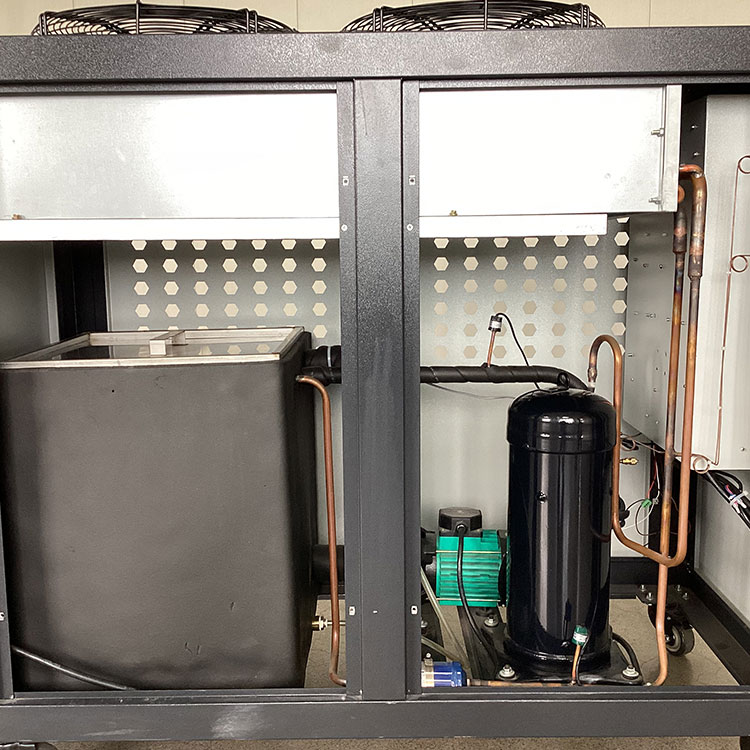

1.Stainless steel insulated water tank: long service life, no pollution.
2.R22 refrigerant: good cooling effect.
3.Refrigeration system: adopts various precision control, which can accurately control the stability of the system.

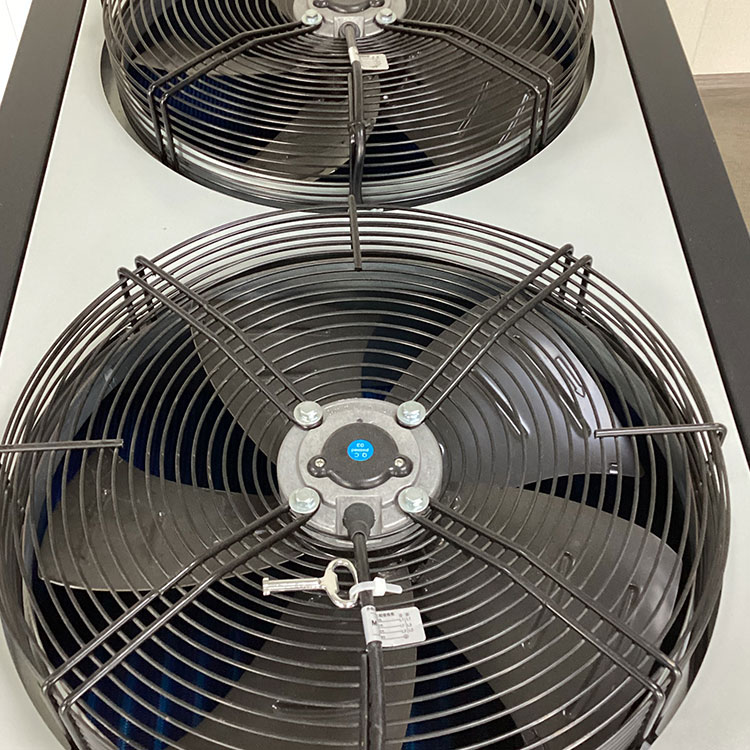

4.Finned condenser: fast heat conduction and good heat dissipation.
5.Famous brand original precision temperature control meter: display accuracy up to ±0.5℃.
●Cooling temperature range 5~35℃
●Equipped with stainless steel insulated water tank, with long service life and no pollution
●Refrigerated medium uses R22, with good refrigerating effect
●Refrigerating system adopts various precise control, can accurately control the system stablity
●Compressors and pumps are all with overload protection
●Shell condenser, with fast heat conduction and good heat dissipation effect
●Adopt original precision temperature control meter of famous brand, the display accuracy reaches ±0.5°C
| Machine type | XC-05ACI | XC-10ACI XC-15ACI | XC-20ACI | XC-30ACI | XC-40ACI | XC-50ACI | ||
| Refrigeration | kw | 15 | 29.5 | 44 | 58.5 | 86 | 116 | 140 |
| 10³KCAL/H | 12.9 | 25.6 | 38 | 54.4 | 74.1 | 100 | 120 | |
| Source(V/PH/HZ) | 380/3/50 | |||||||
| Input power(kw) | 4.7 | 9.6 | 15 | 19.8 | 28.6 | 42.8 | 58.8 | |
| Compressor type | Turbine type | |||||||
| Compressor power(kw) | 3.75 | 7.5 | 11.9 | 15.5 | 22.5 | 30 | 37.5 | |
| Pump power(kw) | 0.55/1.1 | 1.1/1.5 | 1.5/2.2 | 2.2/3 | 5.5 | 5.5 | ||
| Chilled water flow(m³h) | 3.6/12.5 | 12.5-20 | 20/25 | 25/30 | 30/40 | 45 | 45 | |
| Evaporator type | Coil tube | Shell and tube type | ||||||
| Water tank volume(L) | 70 | 83 | 150 | 200 | 285 | 300 | 300 | |
| Condenser | Shell and tube type | |||||||
| Refrigerant | R22 | |||||||
| Throttling mode | Expansion valve | |||||||
| Protector | High and low voltage phase loss reverse overload | |||||||
| (mm) H×W×H | External size | 1450x600x1180 | 1550x800x1420 | 1900x900x1680 | 2310x1080x1760 | 2600x1000x1900； 2900x1100x2100； | ||
